PCM2705

External USB DAC with remote control feature

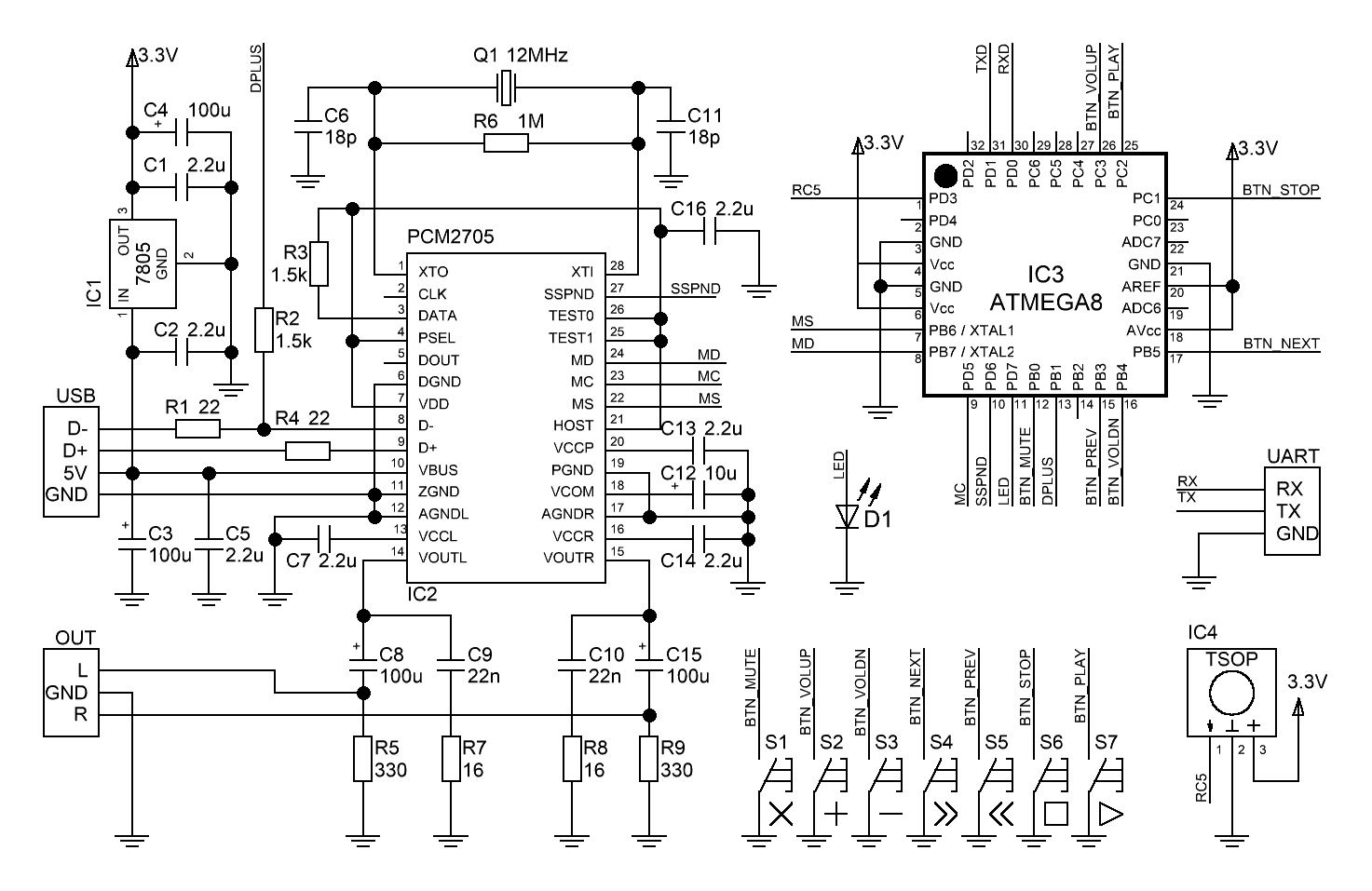

PCM2705 is an USB DAC which can be used as external audio card for your PC. This project adds functionality to control media player on the computer by sending standard HID commands through USB like multimedia keyboards do that. Device can be controlled via buttons or RC5/NEC remote control.

By default button sends appropriate HID command to PC when pressed and LED flashes once. To learn your NEC/RC5 remote your first need to enter learn mode by pressing MUTE, VOLUP and VOLDN buttons simultaneously. LED will flash 3 times. Then, press button on your remote control followed by button on device to link them. LED will flash 2 times. So, learn all other buttons by the same method and exit learn mode by pressing MUTE, VOLUP and VOLDN buttons simultaneously again. Now you can use remote control.
